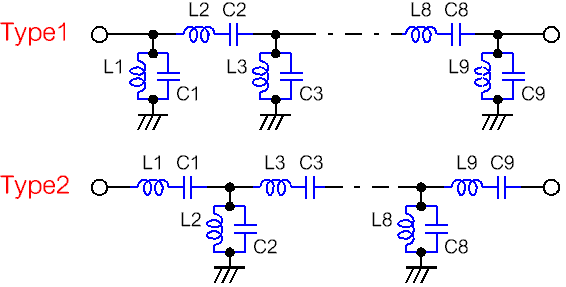

切比雪夫帶通濾波器設計 | Chebyshev BPF Calculator
2012-10-10
點擊：0
| [ How to use ] |
| 1. Input resonant circuit number (n), center frequency (fc), bandwidth (BW), characteristic impedance (Zo), ripple, and click on [ Calculate ] button. 2. A calculation result is indicated. [ Note ] The number of resonant circuits is only an odd number individual. (Even if an even number is inputted to n, 1 is added automatically, and changed into the odd number.) |
