學個Antenna：HFSS腳本建模入門

2022-01-10 來源：微波射頻網 作者：94巨蟹座少年字號：大中小

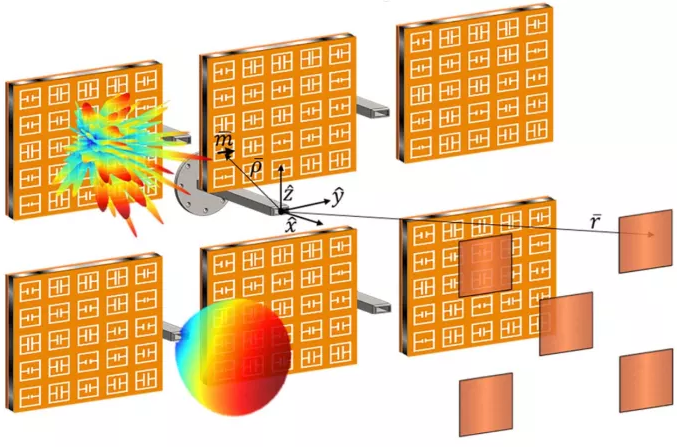

學個Antenna是以天線仿真和調試為主，理論原理為輔的干貨天線技術專欄，包括天線入門知識以及各類天線的原理簡介、仿真軟件建模、設計、調試過程及思路。如有想看到的內容或技術問題，可以在文尾寫下留言。

摘要：

HFSS作為高頻結構設計的首選工具和行業標準，能從幾何結構、材料特性到分析、控制及所有后處理進行全參量化設計。可對于仿真設計相關的工程師來說，利用HFSS軟件進行3D可視化建模容易，但是后期的模型維護和傳閱卻難以為繼。

本文使用的電磁仿真軟件為ANSYS Electronics Desktop Version 2017.2.0

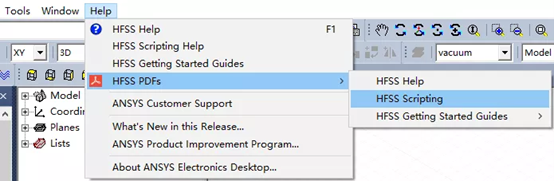

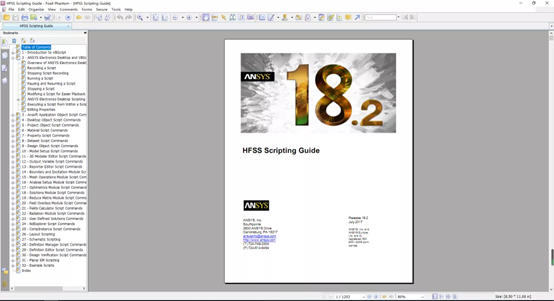

HFSS腳本錄制

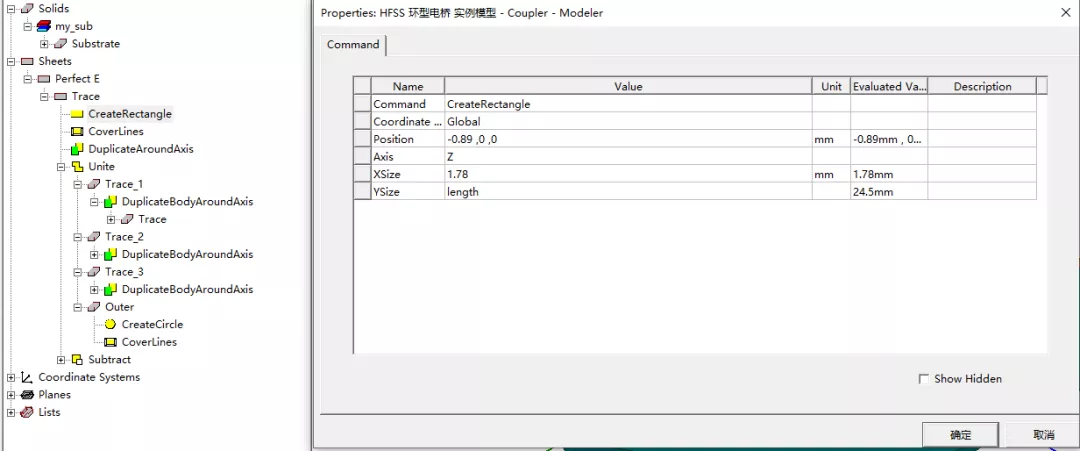

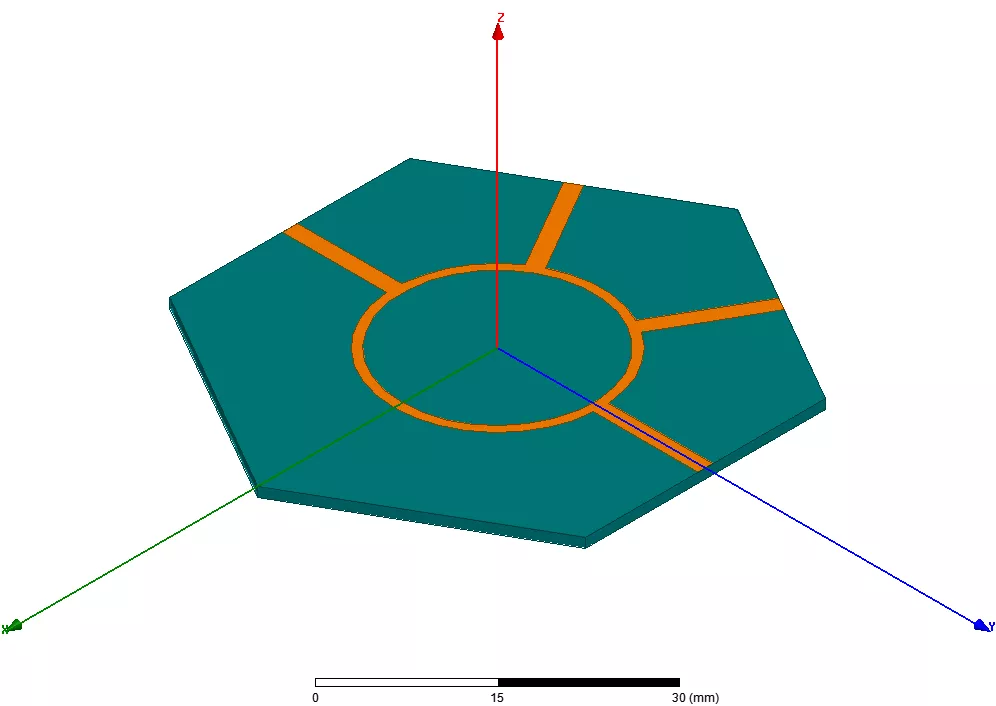

下圖所示環形器的HFSS建模不難，但是工程師們建模習慣不同，最后各自的仿真模型在進行傳閱時，其可讀性就難免參差不齊。有的喜歡預估好初始值后進行純數字建模，有的喜歡variables和數字混用，即使是有些人采用全參量化建模，由于大家命名習慣大相徑庭，最終拿到別人的仿真文件進行參數微調時，也會對模型的建立邏輯和某些結構對應的變量有所困惑。

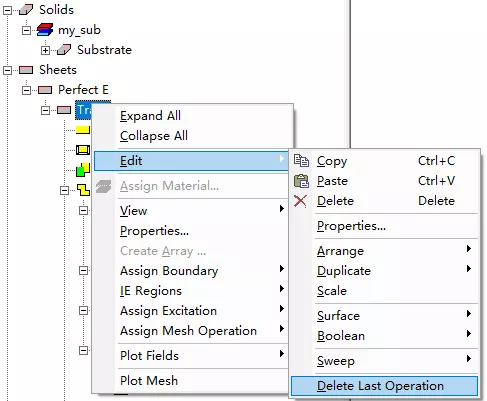

特別是在別人已經建立好的模型上進行調試優化時，面對“一磚一瓦”構成的復雜結構時，想通過Delete Last Operation操作來窺視開發者的模型確實比較麻煩。

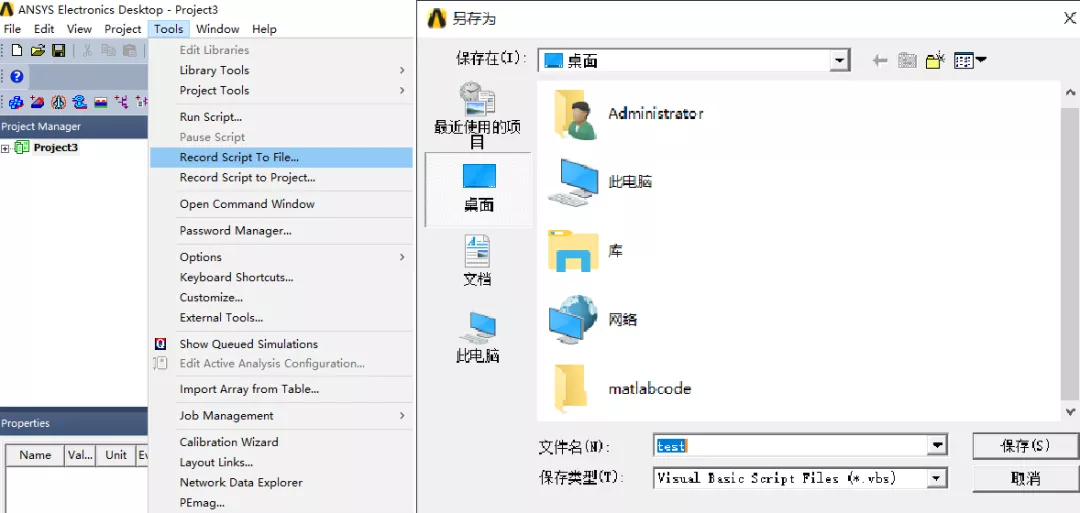

這里提供一種最簡單的方法：HFSS自帶的Record Script To File功能進行vbs腳本的錄制。可能大家聽說過這個功能，但是在實施過程中遇到一些困難。比如明明錄制好了，再次Run Script進行重構模型為什么報錯呢？

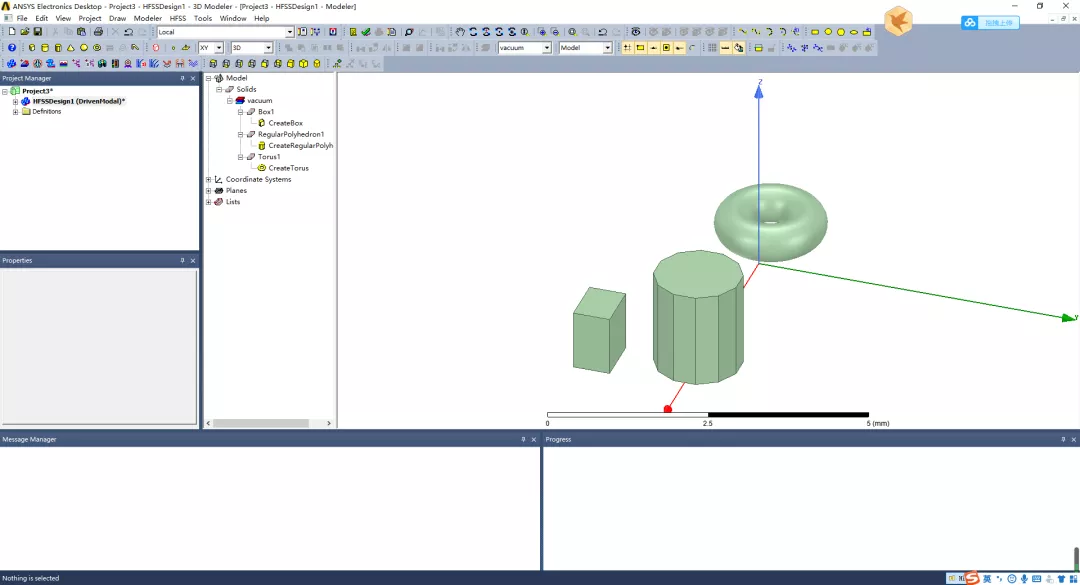

如下圖所示，隨便建立一個文件進行模型的繪制，對其進行vbs腳本錄制：

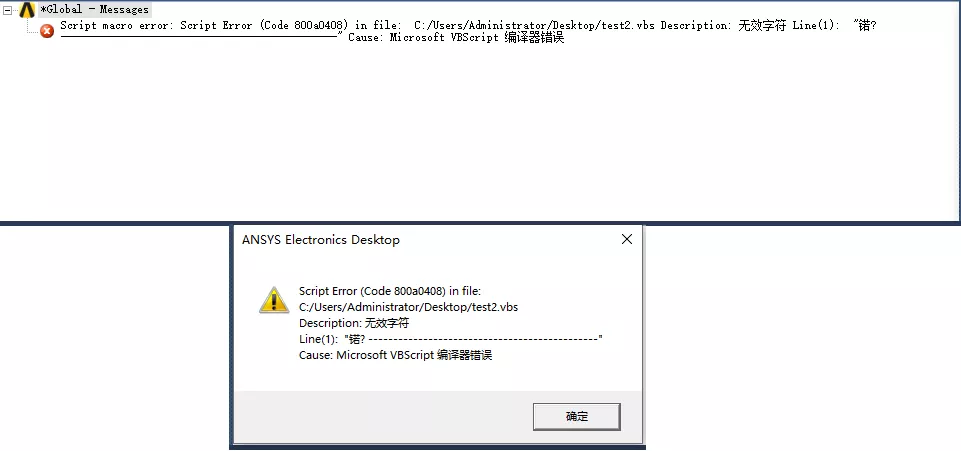

Run Script后，HFSS軟件提示報錯，很多人第一次使用這個可能都會遇到這種問題。

其實只需要在錄制腳本前，軟件處于空文件狀態(Project Manager下無Project和Design)，這樣從零開始錄制的腳本執行起來就不會報錯。

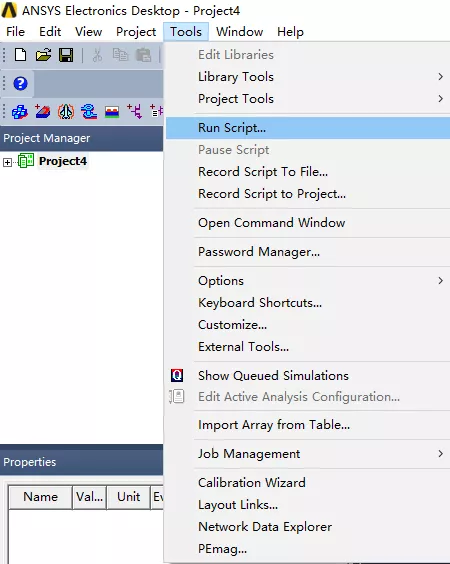

經過上述操作后錄制的vbs代碼如下（可直接復制到txt文件里，將文件類型后綴改為.vbs，在HFSS軟件中的Tool->Run Script載入執行即可）：

1 ' ----------------------------------------------

2 ' Script Recorded by ANSYS Electronics Desktop Version 2017.2.0

3 ' ----------------------------------------------

4 Dim oAnsoftApp

5 Dim oDesktop

6 Dim oProject

7 Dim oDesign

8 Dim oEditor

9 Dim oModule

10 Set oAnsoftApp = CreateObject("Ansoft.ElectronicsDesktop")

11 Set oDesktop = oAnsoftApp.GetAppDesktop()

12 oDesktop.RestoreWindow

13 Set oProject = oDesktop.NewProject

14 oProject.InsertDesign "HFSS", "HFSSDesign1", "DrivenModal", ""

15 Set oDesign = oProject.SetActiveDesign("HFSSDesign1")

16 Set oEditor = oDesign.SetActiveEditor("3D Modeler")

17 oEditor.CreateRegularPolyhedron Array("NAME:PolyhedronParameters", "XCenter:=", _

18 "-0.4mm", "YCenter:=", "-0.4mm", "ZCenter:=", "0mm", "XStart:=", "0.2mm", "YStart:=", _

19 "0.2mm", "ZStart:=", "0mm", "Height:=", "1.2mm", "NumSides:=", "12", "WhichAxis:=", _

20 "Z"), Array("NAME:Attributes", "Name:=", "RegularPolyhedron1", "Flags:=", "", "Color:=", _

21 "(143 175 143)", "Transparency:=", 0, "PartCoordinateSystem:=", "Global", "UDMId:=", _

22 "", "MaterialValue:=", "" & Chr(34) & "vacuum" & Chr(34) & "", "SurfaceMaterialValue:=", _

23 "" & Chr(34) & "" & Chr(34) & "", "SolveInside:=", true, "IsMaterialEditable:=", _

24 true, "UseMaterialAppearance:=", false)

25 oEditor.CreateCylinder Array("NAME:CylinderParameters", "XCenter:=", "0.8mm", "YCenter:=", _

26 "1.8mm", "ZCenter:=", "0mm", "Radius:=", "0.2mm", "Height:=", "1mm", "WhichAxis:=", _

27 "Z", "NumSides:=", "0"), Array("NAME:Attributes", "Name:=", "Cylinder1", "Flags:=", _

28 "", "Color:=", "(143 175 143)", "Transparency:=", 0, "PartCoordinateSystem:=", _

29 "Global", "UDMId:=", "", "MaterialValue:=", "" & Chr(34) & "vacuum" & Chr(34) & "", "SurfaceMaterialValue:=", _

30 "" & Chr(34) & "" & Chr(34) & "", "SolveInside:=", true, "IsMaterialEditable:=", _

31 true, "UseMaterialAppearance:=", false)

32 oEditor.CreateBox Array("NAME:BoxParameters", "XPosition:=", "0.6mm", "YPosition:=", _

33 "-2.6mm", "ZPosition:=", "0mm", "XSize:=", "0.8mm", "YSize:=", "0.4mm", "ZSize:=", _

34 "0.8mm"), Array("NAME:Attributes", "Name:=", "Box1", "Flags:=", "", "Color:=", _

35 "(143 175 143)", "Transparency:=", 0, "PartCoordinateSystem:=", "Global", "UDMId:=", _

36 "", "MaterialValue:=", "" & Chr(34) & "vacuum" & Chr(34) & "", "SurfaceMaterialValue:=", _

37 "" & Chr(34) & "" & Chr(34) & "", "SolveInside:=", true, "IsMaterialEditable:=", _

38 true, "UseMaterialAppearance:=", false)

39 oEditor.CreateCone Array("NAME:ConeParameters", "XCenter:=", "2.2mm", "YCenter:=", _

40 "-0.2mm", "ZCenter:=", "0mm", "WhichAxis:=", "Z", "Height:=", "0.6mm", "BottomRadius:=", _ 41"0.447213595499958mm", "TopRadius:=", "0.4mm"), Array("NAME:Attributes", "Name:=", _

42 "Cone1", "Flags:=", "", "Color:=", "(143 175 143)", "Transparency:=", 0, "PartCoordinateSystem:=", _

43 "Global", "UDMId:=", "", "MaterialValue:=", "" & Chr(34) & "vacuum" & Chr(34) & "", "SurfaceMaterialValue:=", _

44 "" & Chr(34) & "" & Chr(34) & "", "SolveInside:=", true, "IsMaterialEditable:=", _

45 true, "UseMaterialAppearance:=", false)

除了錄制建模的腳本，我們還可以進行繁瑣的數據處理、導出步驟的錄制，如下面代碼就是為了實現S11和3D方向圖數據的一鍵式導出。

1 ' ----------------------------------------------'

2 Script Recorded by ANSYS Electronics Desktop Version 2017.2.0

3 ' ----------------------------------------------

4 Dim oAnsoftApp

5 Dim oDesktop

6 Dim oProject

7 Dim oDesign

8 Dim oEditor

9 Dim oModule

10 Set oAnsoftApp = CreateObject("Ansoft.ElectronicsDesktop")

11 Set oDesktop = oAnsoftApp.GetAppDesktop()

12 oDesktop.RestoreWindow

13 'dipole_simu：項目名稱 Project Name

14 Set oProject = oDesktop.SetActiveProject("dipole_simu")

15 'veeDipole_idealFeed1：設計名稱 Design Name

16 Set oDesign = oProject.SetActiveDesign("veeDipole_idealFeed1")

17 Set oModule = oDesign.GetModule("ReportSetup")

18 'oModule.ExportToFile "Results下的報告名稱", "csv保存路徑+csv文件名"

19 oModule.ExportToFile "S11", "C:/Users/Administrator/Desktop/S11.csv"

20 oModule.ExportToFile "Gain Plot 1", _

21 "C:/Users/Administrator/Desktop/Gain Plot 1.csv"

22

HFSS API腳本化建模
前文已經介紹了如何錄制腳本，便于模型的重建和數據的導出。但是對方收到vbs文件后，要進行模型的修改，沒有注釋其實看起來也是一團糟的。雖然可以通過多次刪除部分vbs代碼一步步回構到自己想要的節點，不過這種方法也是有點麻煩。

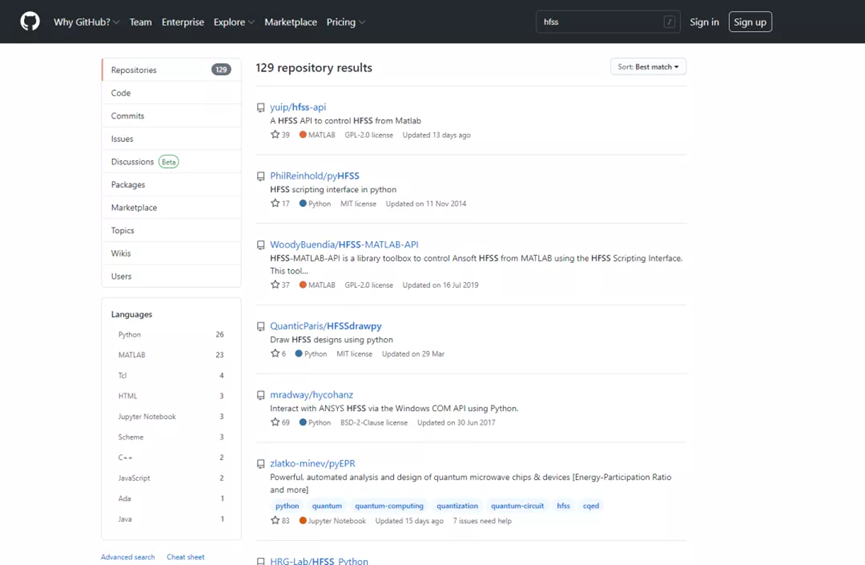

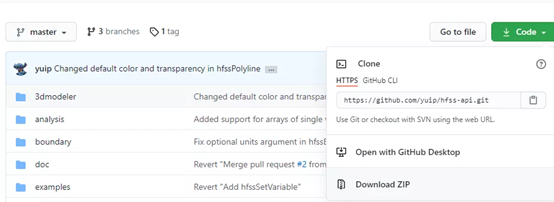

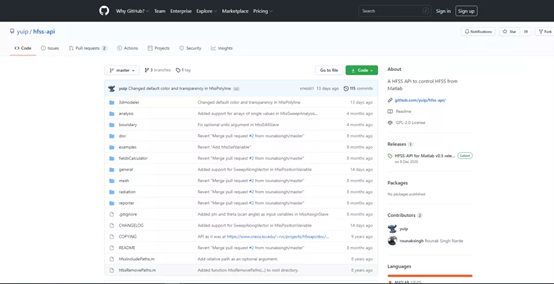

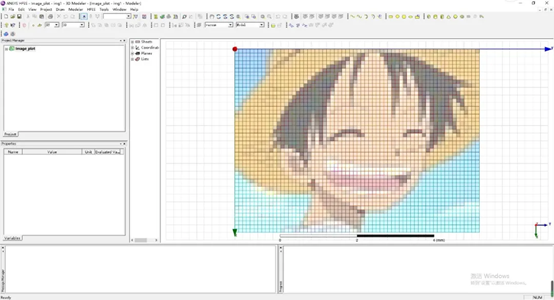

幸運的是，matlab調用hfss的這項工程早已在Github上模塊化并開源了。
